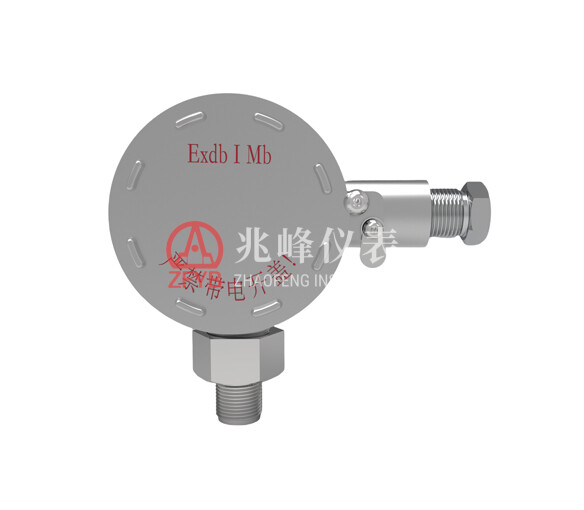

GPD Series Mining Explosion-Proof Pressure Transmitter
GPD Series Mining Explosion-Proof Pressure Transmitter
The GPD series mining explosion-proof pressure transmitter integrates a high-precision pressure sensor with a stable conversion circuit. It features dual independent switch outputs, a (4–20) mA signal, and an OLED display for real-time pressure readings. The stainless steel explosion-proof housing complies with GB/T3836 standards (Exdb Ⅰ Mb), making it suitable for underground and surface coal mining pressure monitoring. It supports 4:1 range migration for flexible adjustments.
Mining Pressure Instruments

GPD Series Mining Explosion-Proof Pressure Transmitter

Contact Us

Overview:

● Measurement Type: High-precision pressure sensing

● Output Options: Dual switch outputs, (4–20) mA signal

● Display: High-brightness OLED screen

● Applications: Pressure monitoring in underground and surface mining equipment

● Explosion-Proof Rating: Exdb Ⅰ Mb, compliant with GB/T3836 standards


Key Technical Specifications:

● Power Supply: (12–36) VDC (normal), (9–45) VDC max

● Signal Output: (4–20) mA DC

● Accuracy: 0.5% (standard range), 1% (after range adjustment)

● Control Output: Explosion-proof encapsulated relay

   o AC: ≤250VA, ≤3A, ≤250V

   o DC: ≤150W, ≤2A, ≤125V

● Display: OLED screen (handheld configurator)

● Power Consumption: <5W

● Temperature Compensation: (-20 to 70)°C

● Protection Rating: IP54 (standard), IP65 (special version)

● Vibration Resistance: <20 m/s²

● Explosion-Proof Design:

   o Stainless steel explosion-proof housing

   o Explosion-proof cable entry for 8–12 mm mining cables

● Installation: Compact and lightweight, supports installation in any position

● Pressure Port Thread: Standard M20×1.5 (custom options available on request)
