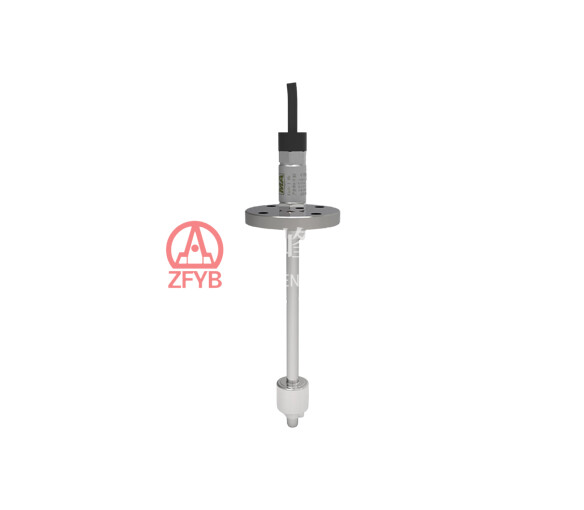

Overview:
● Measurement Type: Float ball level sensing
● Applications: Level control for water, oil, acid-base solutions, wastewater, and other conductive/non-conductive liquids
● Explosion-Proof Rating: Exdb Ⅰ Mb, compliant with GB/T3836 standards
● Special Features: Can be used in pressurized closed tanks (max pressure 1.6 MPa)
● Material: Stainless steel 304
● Installation: Vertical installation with downward guide rod
Key Technical Specifications:
● Control Medium Temperature: (-20 to 100)°C
● Working Pressure: ≤1.6 MPa
● Medium Density: ≥0.4 g/cm³
● Medium Viscosity: ≤0.05 Pa.s
● Measuring Depth: (200–3000) mm
● Accuracy Level: 1st grade
● Output Signal: Passive switch signal (normally open contacts), reed switch contact capacity: 250V/2A, lifespan of 5×10⁵ cycles
● Explosion-Proof Mark: Exdb Ⅰ Mb
● Protection Rating: IP54 (GB/T4208 compliant)
● Vibration Resistance: <20 m/s²
● Number of Switches: Up to 5 reed switches, user-defined
● Material: Stainless steel 304
● Weight: 4 kg
● Explosion-Proof Design: Stainless steel explosion-proof housing, IP54 protection, cable entry meets GB/T3836.1 Ex cable entry requirements, sealed cable connections with reliable soldering and compression.
