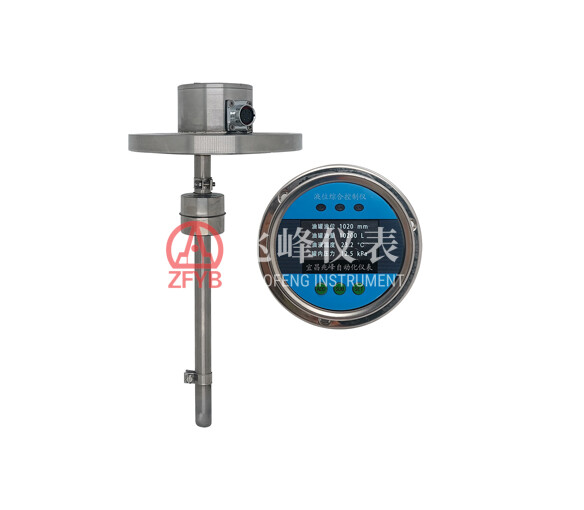

Overview:

● Applications: Designed for pressurized and open tanks to measure liquid level, pressure, and temperature.

● Structure: Composed of a sensor and a display (host), with CAN 2.0B communication.

● Display: OLED screen with Chinese interface, supporting parameter settings, range changes, and on-site calibration.

● Explosion-Proof Certification: Compliant with GB3836, Exib II CT5Ga, suitable for hazardous environments.

Key Technical Specifications:

● Working Environment Temperature: -40°C to 60°C

● Storage Limit Temperature: -55°C to 70°C

● Relative Humidity: ≤95% (at 40°C)

● Power Supply: 9-36 VDC, 2A (max), Power consumption: <3W

● Signal Output:

   o CAN Bus Signal (CAN 2.0B)

   o Relay switch output

   o Normally open magnetic switch output (optional)

● Explosion-Proof Rating: Exib II CT5Ga, with 5VDC intrinsic safety power supply

● Protection Level: IP54 (compliant with GB4208)

Measurement and Control Parameters:

● Liquid Level:

   o Resolution: 7 mm

   o Accuracy: 1% (for levels > 700 mm)

   o Alarm: Main unit alarm light + relay output

● Pressure:

   o Resolution: 0.01 kPa / 0.001 MPa

   o Accuracy: 0.5%

   o Alarm: Main unit alarm light

● Temperature:

   o Resolution: 0.1°C

   o Accuracy: 0.5%

   o Alarm: Main unit alarm light

● Additional Level Control:

   o Accuracy: ±10 mm

   o Output: Normally open magnetic switch
