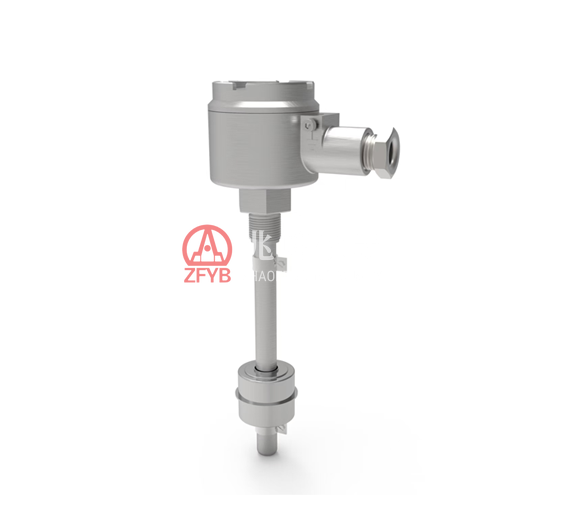

GQY-RS Mining Explosion-proof Level & Temperature Sensor

Mining Level Instruments

Product Overview

The instrument adopts a combined design of a magnetic position sensor and a temperature sensor, providing wide applicability. Equipped with a high-precision conversion circuit and a 4-digit LED display, it converts the measured level and temperature parameters into an RS485 output signal for system monitoring, regulation, and control, enabling broad application.

The instrument is designed and manufactured with a stainless-steel flameproof enclosure in strict accordance with GB/T 3836 standards. The explosion-proof marking is Ex db I Mb.

Key Technical Specifications

Item	Technical Parameters
Accuracy	Level: Class 1; Temperature: Class 1
Power Supply	24 VDC (standard); operating range: 12～36 VDC.
Signal Output	Level: RS485 signal; Temperature: RS485 signal. • Quantity: 1 channel; • Transmission mode: master-slave, half-duplex; • Communication baud rate: 4800–115200 bps.
Maximum Operating Current	＜22mA
Operating Temperature	（-25～70）℃
Explosion-proof Marking	Ex db I Mb
Protection Rating	IP54 (standard type), IP65 (special type), compliant with GB/T 4208
Vibration Resistance	＜50 m/s²
Explosion-proof Structural Features	The enclosure is made of stainless steel with a flameproof design. It is equipped with increased safety terminal blocks. The cable entry device complies with the Ex cable entry requirements specified in the appendix of GB/T 3836.1-2021. Recommended cable outer diameter: Φ8–Φ12 mm.

Model and Specifications

Model	Measuring Range	Transmitter Output	Maximum Working Pressure
GQY2900/80-RS	Level: (300–2900) mm; Temperature: (0–80) °C, specified by user.	RS485 signal	1.6MPa
