Products
‹
›

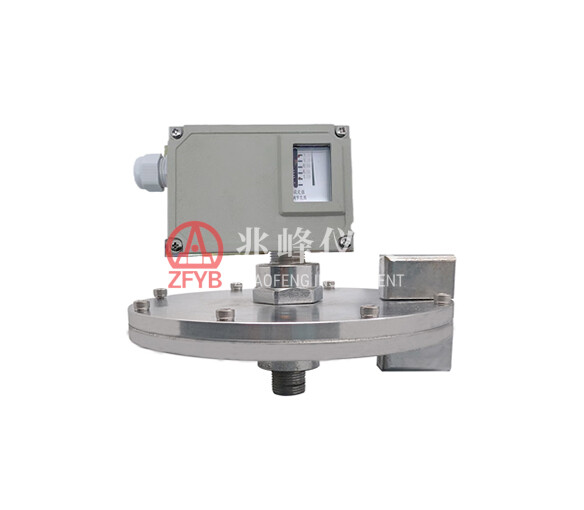

Overview:
• Types: Standard and explosion-proof models
• Applications: Controls pressure differential between the same or different pressure sources in industrial and hazardous environments
• Explosion-proof Certification: ExdeⅡCT5Gb for use in II A, II B, II C categories with T1-T5 temperature groups
• Pressure Adjustment Range: 0.1 kPa to 100 kPa
• Protection: IP54-rated for dust and water resistance
• Industries: Used in oil, chemical, and power industries, particularly in hazardous environments
Key Technical Specifications:
• Control Accuracy: 1.6 grade, 2.5 grade
• Switch Capacity:
○2A250VA250VAC(max)
○2A100W60VDC(max)
• Enclosure Protection Rating: IP54 (meets GB4208)
• Pressure Adjustment Range: 0.1 kPa to 100 kPa
• Operating Pressure Range: 0-1 MPa
• Explosion-proof Certification: ExdeⅡCT5Gb
• Applications: Differential pressure control in explosion-prone areas
