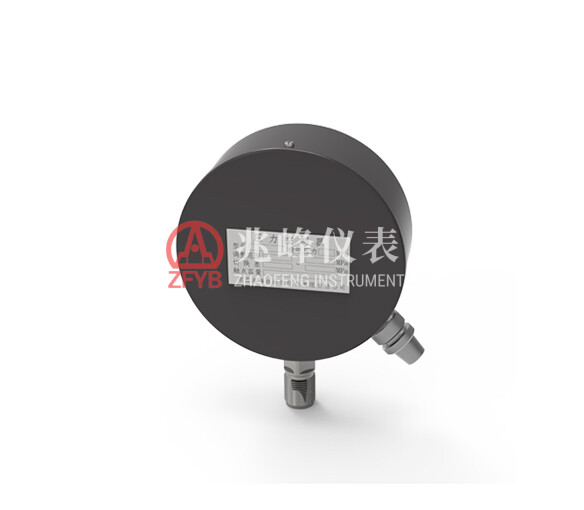

B2J Pressure Controller
The B2J pressure controller uses a C-type spring tube pressure sensing element to activate a micro switch. It generates a switch signal when the pressure reaches the set point and can control the pressure of non-corrosive, non-explosive gases, liquids, or steam. The controller has a setpoint adjustment range of 1-60 MPa and is suitable for two-point or four-point pressure control.
Pressure Controllers
Contact Us
Overview:
• Applications: Control of non-corrosive, non-explosive gases, liquids, or steam
• Control Points: Two-point or four-point pressure control
• Pressure Range: 1-60 MPa
• Industries: Used in industrial systems requiring precise pressure control
Key Technical Specifications:
• Control Accuracy: 1.6 grade
• Switch Capacity: 2A250VA250VAC(max) / 2A100W60VDC(max)
• Enclosure Protection Rating:
○Standard: IP41
○Protective type: IP54 (meets GB4208)
