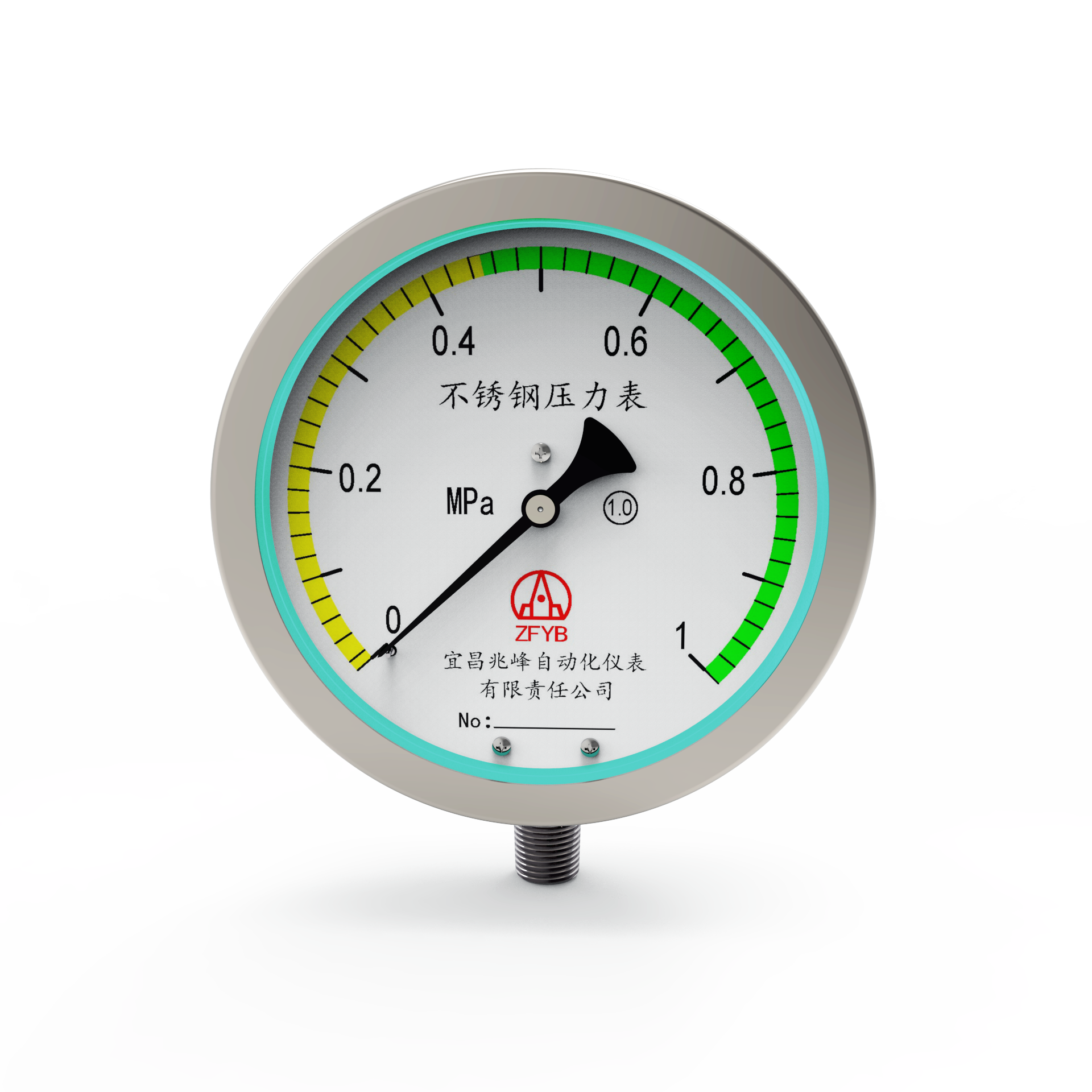

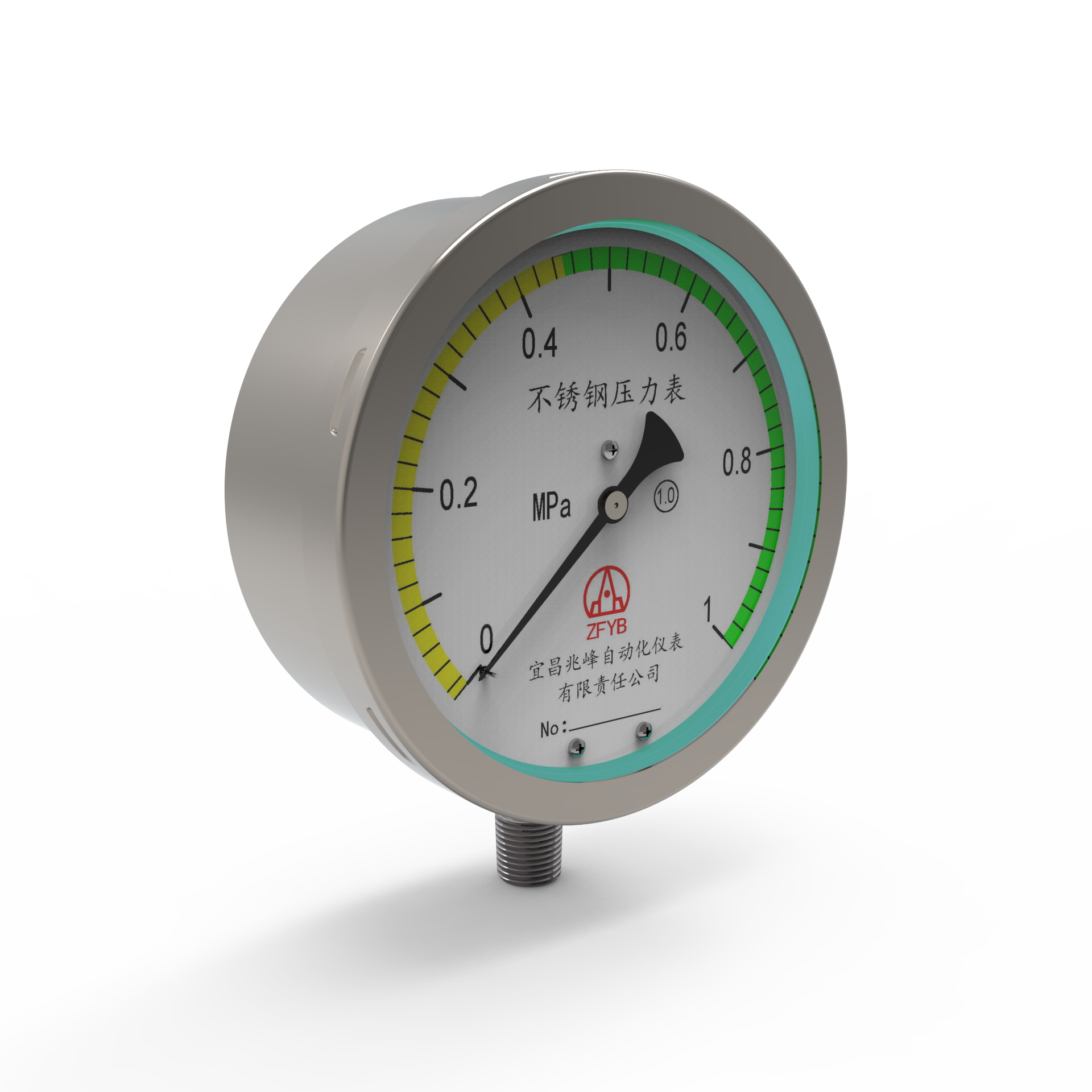

Overview:

● Types: Standard, vibration-resistant, all-stainless steel, and all-stainless steel vibration-resistant pressure gauges

● Applications: Measures the pressure of non-corrosive liquids, gases, or steam.

● Features: Corrosion-resistant and vibration-resistant options; stable readings in pulsing and impact environments; filled with damping fluids (silicone oil or glycerin) for enhanced stability.

● Industries: Widely used in machinery, metallurgy, oil and gas, chemicals, paper manufacturing, defense, nuclear power, and water resources.

Key Technical Specifications:

● Indication Accuracy: Grade 1.0 (Special), 1.6, 2.5

● Operating Temperature:

   ○ Medium: -20 to 70°C

   ○ Environment: -25 to 55°C (custom high-temperature models available)

   ○ Military and special models: Medium: -41 to 70°C; Environment: -41 to 60°C

● Vibration Resistance:

   ○ Standard: V.H.3 level

   ○ Vibration-resistant: V.H.4 level

● Pressure System Material:

   ○ Pressure element: Tin bronze QSn4-0.3 or stainless steel 316L

   ○ Connection: Copper alloy or stainless steel 304

● Case Material:

   ○Standard: Chrome-plated carbon steel

   ○All-stainless steel: 304
