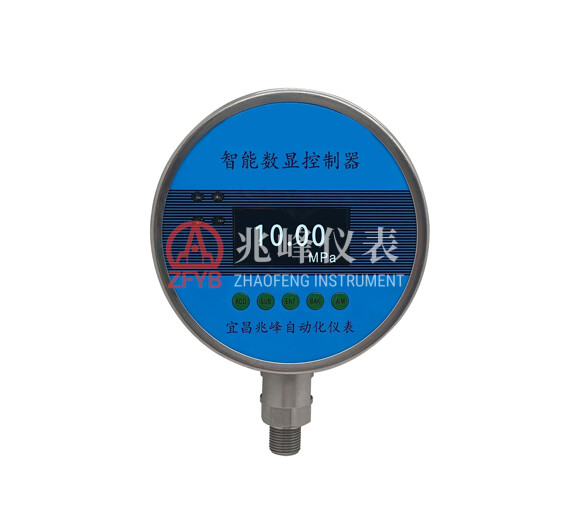

Overview
● Types: Standard and explosion-proof models
● Applications: Precision pressure measurement and control in gas, liquid, and steam systems
● Features: High-accuracy sensing, OLED pressure display, multiple switch points, digital signal output options
● Industries: Machinery, chemicals, metallurgy, water resources
Key Technical Specifications
● Accuracy:
o Display control: Grade 0.5
o Output: Grade 0.25, 0.5
● Power Supply: 18–36 VDC, 110–260 VAC
● Signal Output: (4–20) mA DC; CAN/RS485 (optional)
● Switch Capacity: SPDT relay
o 2A 250VA 250VAC (max)
o 2A 100W 60VDC (max)
● Display: OLED
● Power Consumption: <5W
● Operating Temperature: -40 to 85°C
● Temperature Compensation: -20 to 70°C
● Protection Rating:
o Standard: IP54
o Enhanced: IP65 (GB4208)
● Explosion-Proof Rating: ExdⅡCT5Gb
