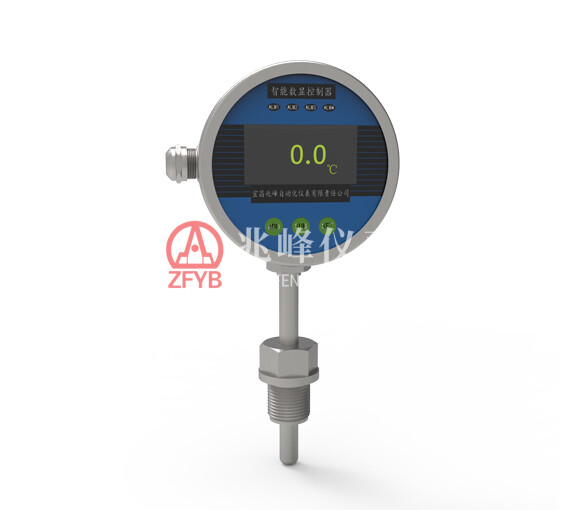

Overview

● Measurement Range: -200 to 400℃

● High-Precision Pt100/Pt1000 Sensor

● OLED Display: 4 or 5-digit, adjustable for reverse viewing

● Applications: Suitable for high-pressure environments (up to 40MPa)

Key Technical Specifications

● Accuracy: 0.5% / 1%

● Power Supply: 9-40VDC; 86-260VAC (C-type)

● Power Consumption: <5W

● Analog Output: (4-20) mA DC, (1-5) V DC

● Digital Output: CAN2.0B / RS485

● Switch Capacity: 2A 250VAC (max) or 2A 100W 60VDC (max)

● Relay Outputs: 2 (standard), 4 (C-type)

● Operating Temperature:

   o Sensor: -200 to 400℃

   o Electronics: -40 to 70℃

● Material: 304/316L stainless steel, PTFE or copper sealing

● Installation: Any position, display supports 180° rotation
